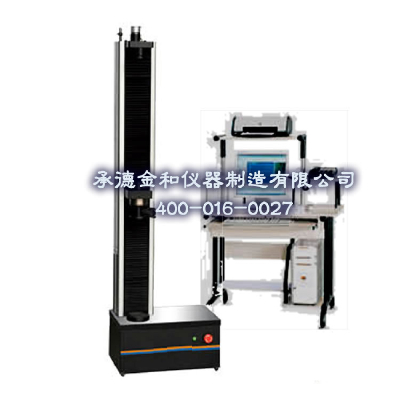

WDW-05 microcomputer control electronic universal testing machine (ARM)
First, function and use
Tensile test of WDW series microcomputer control electronic universal testing machine is suitable for rubber, plastics, textile fabrics, waterproof materials, wire and cable, wire mesh, metal wire, metal rods, plates and other materials, can increase with compression, bending test.
Two, the host structure
The frame structure is composed of an upper beam, a middle beam, a lower beam and a bottom panel through two pairs of ball screws and a column. By the full digital AC servo motor drive reducer and synchronous toothed belt, driven by two pairs of high precision seamless ball screw rotation, drive up and down the cross beam.
Three, host frame
With high precision and no gap precision ball screw, the transmission efficiency and displacement accuracy are improved. The high strength light bar is used to fix the upper beam and the working table top, which forms a high rigid frame structure.
Four, displacement measuring device
Using high precision photoelectric encoder, the relative accuracy is up to 0.5%.
Five, test with
Meet your testing requirements for all kinds of materials.
Six, test force measurement
The spokes with high precision and high stability of the tension strain sensor with high precision amplifier system, ensure the high precision of test force.
Multiple sensors can be used according to user needs, to achieve a wide range of test force measurement.
Seven, limit switch
The machine has a limit protection, to achieve the limit after the automatic shutdown.
Eight, software system
The use of brand computer, control system software operating system platform, with fast running, friendly interface, simple operation and so on. Can meet the needs of different materials test measurement, equipped with hundreds of test standards, can meet the requirements of international standards, national standards or industry standards.
Nine, functional characteristics
Automatic calibration: the system can realize the automatic calibration standard of value
In the whole test process, real-time display of test force, peak value, displacement, speed, etc.
- breaking judgment: fracture, automatic stop moving beam
- limit protection: a mechanical and control two level limit protection function
