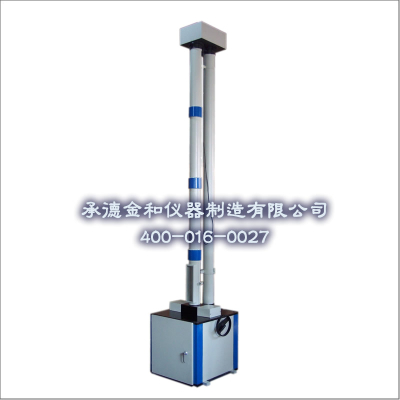

XJL-300B-1 type pipe drop hammer impact test machine

First, technical parameters:

1, the maximum impact energy: standard maximum impact energy 126J (can be matched to 320J)

2, standard configuration hammer body quality: 0.25kg, 0.5kg, 0.8kg, 1.0kg, 1.25Kg, 1.6kg, 2.0kg, 2.5kg, 3.2kg, 4.0KG,, 5.0kg, 6.3kg

Optional hammer weight: 10kg, 12.5kg, 8kg, 16KG

3, hammer hammer configuration: D25 A and D90 a hammer

4, impact height: maximum 2000mm (can be arbitrarily set)

5, impact height error: / - 2mm

6, sample size: diameter 16mm ~ 400mm diameter (other specifications can be customized)

7, sample support: V type (the size of each piece)

7, power: 220V, 50Hz

8, the use of temperature: 35 - 10

9, size: 620 x 600 x 3386mm

10, the weight of the whole machine: 360kg
